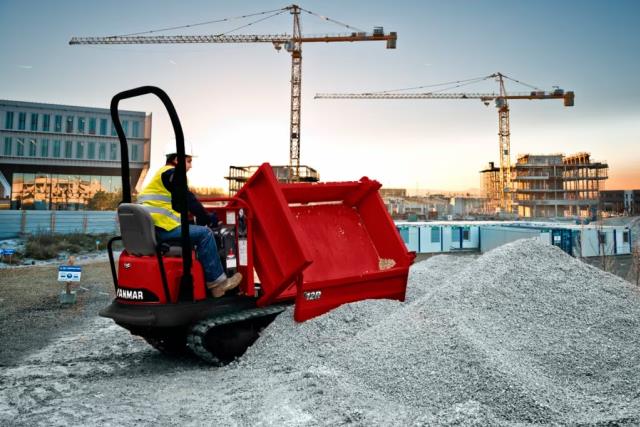

YANMAR TRACKED DUMPER

Where to find YANMAR TRACKED DUMPER in Bellingham

Image for reference only
Actual item may look different
Click on image for larger view

Where to find YANMAR TRACKED DUMPER in Bellingham Where to find YANMAR TRACKED DUMPER in Bellingham

Click on above thumbnails for alternate view

4 Hour: $100.00

Daily: $150.00

Weekly: $600.00

Quantity: for a period of
4 hour(s)   day(s)   week(s)


Additional Information

  • --SPECIFICATIONS--
  • MODEL # - C12R-C
  • Weight - Transport weight 1025 kg
  • Operating Weight - 1100 kg
  • Payload - 1150 kg
  • Engine Type - 402J-05 IG84557R
  • Fuel - Diesel
  • Net Power - 7.5 kw / 10.2 HP / 2800 rpm
  • Displacement - 0.507 l
  • Max Torque - 30.8 N.m. / 2200 rpm
  • Cooling - Water cooling
  • Starter - 12 V - 1.2kW
  • Battery - 12 V - 36 Ah
  • Alternator - 12 V - 14 A
  • Transmission Type - Hydrostatic & Reduction Gear
  • Hydraulic pump - Gear pump for dump
  • Max pressure - 11.5 l/min x 160 bar
  • Performance Max. traveling speed (low/high) - 5.5 km/h
  • Gradability - 30
  • Noise level (2000/14/CE & 2005/88/CE) - Lwag = 99 dBA ; Lpag = 84 dBA
  • Dumping system - Dumping angle 56 / 58
  • Vessel dimensions (L x w x h) - 1470 x 860 x 315 mm
  • Dumping mechanism - 3 sides
  • Dumping vessel capacity (struck / heaped) - 0.4 / 0.52 cubic m
  • Dump clearance - 325 mm
  • Undercarriage Track width - 230 mm
  • Ground clearance - 150 mm
  • Number of top rollers - 5
  • Track tensioning system - Adjusting bolt
  • Ground pressure (unloaded / loaded) - 0.20 / 0.41 kg/squared cm
  • Capacities Hydraulic tank - 14 l
  • Hydraulic circuit - 16.5 l
  • Fuel tank - 14.5 l
* Please call us for any questions on our yanmar tracked dumper rentals in Bellingham WA & surrounding communities in Whatcom County.
* A $50 reservation fee will be assessed on select items including excavators, skid steers, tractors, and dingoes. This fee will be refundable except in the case of late cancellation (less than 24 hours) or failure to pick up equipment when scheduled.
