Your Quote

Used Equipment For Sale

50HP ARTICULATING LOADER KUBOTA R540

Key: 50HPARTLOADER#01
Manufacturer: N/A
Model: N/A
Sale Price: $73,000.00
Comments:

DELIVERY ITEM ONLY!!
$50 LOAD FEE
$12 A MILE, PICK-UP IS FREE
R540
50.9 HP. Ready for any job you give it.
SPECIFICATIONS
Engine
V2607
Emission Certification
Tier 4 Final
Output (SAE J1995 gross) HP (kW)/rpm
50.9 (38) / 2400
Output (SAE J1349 net) HP (kW)/rpm
47.9 (35.7) / 2400
Displacement (cu. in.)
160 (2615)
Transmission Type
Hydrostatic transmission
Overall Length
17ft 8in (5395)
Overall Width
5ft 7in (1712)
Overall Height
8ft 1in (2453) / 8ft 2in (2473)
Ground Clearance (in.)
13in (330)
Auxiliary Hydraulics Flow Rate (GPM)
14.2 (53.8)
Auxiliary Hydraulic Pressure (psi)
2683 (18.5)
Standard Tire Size
12.5-18
Traveling Speed: High (mph)
12.4 (20.0)
Traveling Speed: Low (mph)
3.0 (4.8)
Traction Force (lbs.)
6541 (29.1)
Front/Rear Axle Traction Lock
Diff-lock (both axles)
Articulation Angle (deg.)
40 (each direction)
Angle of Rear Frame Oscillation (deg.)
8
Loader Clearance Circle ft.in. (mm)
13ft 8in (4175)
Turning Radius Track Circle ft.in. (mm)
11ft 11in (3620)
Brakes (Service)
Enclosed wet disc
Tipping Load (Full Turn)
5644 (2560)/5930 (2690) / 4365 (1980)/4586 (2080)
Tipping Load (Straight)
6437 (2920)/6768 (3070) / 4960 (2250)/5202 (2360)
Rated Operating Capacity (ROC)
2822 (1280)/2965 (1345) / 2183 (990)/2293 (1040)
Standard Bucket Capacity (yd3)
0.85
Bucket Breakout Force (lbs.)
8183 (36.4)
Lifting Capacity at Ground Level lbs. (kN)
6767 (30.1)
Loader Raise / Lower Time (sec.)
6.5 / 4.5
Fuel Tank (gal.)
18.5 (70)
Hydraulic System (gal.)
15.1 (57)
Hydraulic Reservoir (gal.)
10.3 (39)
Operating Weight lbs. (kg)
9888 (4485) / 10285 (4665)
Hinge Pin Height
10ft 7in
Dump Height at Fully Raised Position
8ft 3in
Maximum Dump Angle
45 degrees
Reach Fully Raised at Maximum Dump Angle
2ft 6in
Frame Oscillation Angle
40 degrees
Steering Angle
8 degrees

Where to find 50HP ARTICULATING LOADER KUBOTA R540 in Bellingham

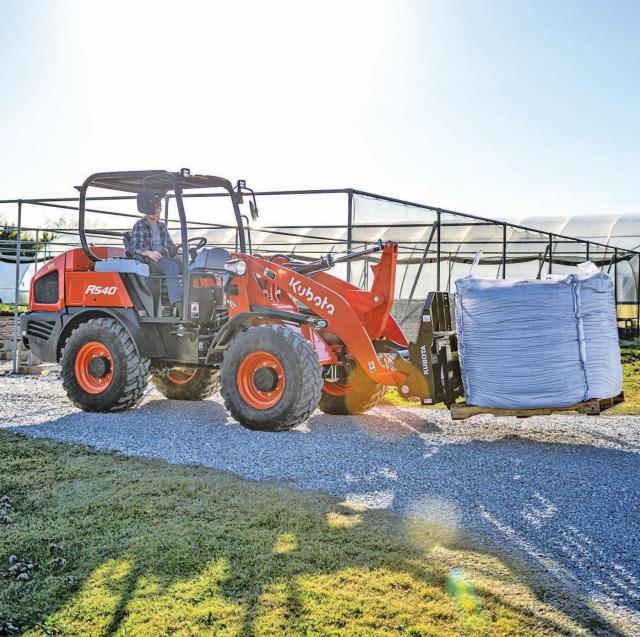

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

* Prices are subject to change.
