GENERATORS

TOWABLE DIESEL LIGHT TOWER GEN 6KW

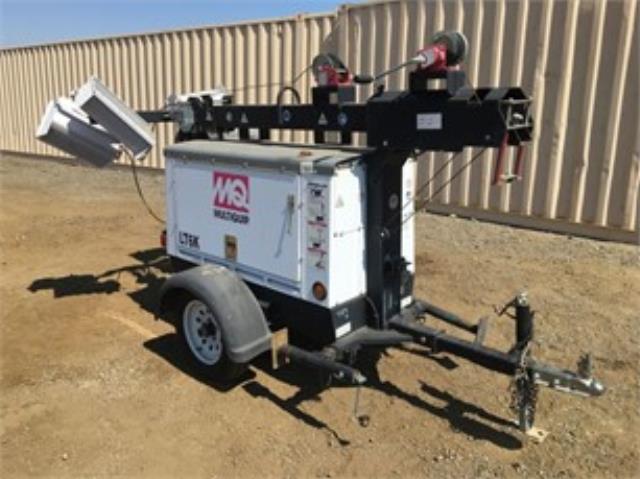

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $110.00

Daily: $150.00

Weekly: $300.00

Quantity: for a period of
4 hour(s) day(s) week(s)

Additional Information

--SPECIFICATIONS--
Light Tower Model - Multiquip LT6K
Height at max extension: 30'
Weight (Dry) - 1,492 lbs. (671 kg.)
Support Points - 4
Wind Stability - 65 mph (80.46 kph)
Lights - (4) - 1,000-Watt Metal Halide
Lumens - 440,000
Light Coverage - 5 to 7 acres
Light Termination - 4 x 3-pin QD plug
Winch Capacity - (2) - 1,500 lbs. (680 kg.)
Winch Rope Wire - 3/16 in.
--GENERATOR SPECIFICATIONS--
Twist-Lock Receptacle Output - 240 VAC @ 25 Amps/125 VAC @ 25 Amps X2
GFCI Receptacle Output - 120 VAC @ 15 Amps
Main Breaker (CB1, 2-Pole) - 30 Amps
Light Circuit Breakers (CB2/CB3 Single Pole) - 20 Amps
GFCI Circuit Breaker (CB4, Single Pole) - 15 Amps
Continuous Output - 6,000 Watts
Noise Level @ 23 ft. - (7 m) 68 dB
--TRAILER SPECIFICATIONS--
Jackstand Capacity - 2,000 lbs. (907 kg.)
Coupler Types - Fixed 2 in. Ball Coupler (Standard) - Adjustable 2 in. Ball Coupler (Option)
Fixed Pintle Eye-Ring Coupler (Option) - Adjustable Pintle Eye-Ring Coupler (Option)
Tire Size - 13 in. (330 mm.)
Tire Rim Size - 13 x 4.5 in. (330 x 114 mm)
Axle Capacity - 2,000 lbs. (907 kg.)
Hub Type - 5-Lug
Suspension - Type 4-Leaf
Electrical Tail-Light Connector - 4-Wire Flat
Kohler KDW 1003
Diesel Engine - TIER 4F
Engine Type 3 - Cylinder, Diesel Engine
Displacement - 62.73 cu. in. (1028 cc)
Max Output Standby - 12 H.P. at 1,800 R.P.M.
Fuel Tank Capacity Approx - 34 U.S. Gallons (103.6 Liters)
Run Time With 4 Lights - 64 Hours
Standard Idle Speed - 1,800 R.P.M.
Fuel Type - Low Sulfur No. 2 Diesel Fuel
Oil Sump Capacity - 2.64 U.S. Quarts (2.5 Liters)
Cooling System - Liquid-cooled
Coolant Capacity - 1.25 U.S. Quarts (4.75 Liters)
Starting Method - Electric Start
Battery Type - Group 24
Total Weight - (Dry) 187.3 lbs. (85 Kg.)
Light Tower Model - Wacker Neuson LTT6
Length - 100.9"
Width - 47.5"
Height - 100.3"
Operating weight - 1,554.3 lb
Mast height max. - 23'
Output frequency - 60 Hz
Generator Rating 1~ (Continuous) - 6 kW
Generator Manufacturer - Mecc Alte
Engine type - Diesel engine
Cylinder - 3
Cylinder capacity - 62.7 cubic in
Fuel - Diesel
Tank capacity - 52.4 Gal
Effective power - 11.3 hp
Operating Engine speed - 1,800 rpm
Exhaust-gas limit - EPA tier 4 final
Engine Manufacturer - Kohler
Lighting appliances - 320 W LED
Bulb power - 320 W
Fuel consumption (Lights only) - 0.3 GPH
Run Time (Lights only) - 173.4 hr

* Please call us for any questions on our towable diesel light tower gen 6kw rentals in Bellingham WA & surrounding communities in Whatcom County.
* A $50 reservation fee will be assessed on select items including excavators, skid steers, tractors, and dingoes. This fee will be refundable except in the case of late cancellation (less than 24 hours) or failure to pick up equipment when scheduled.
