AIR COMPRESSORS

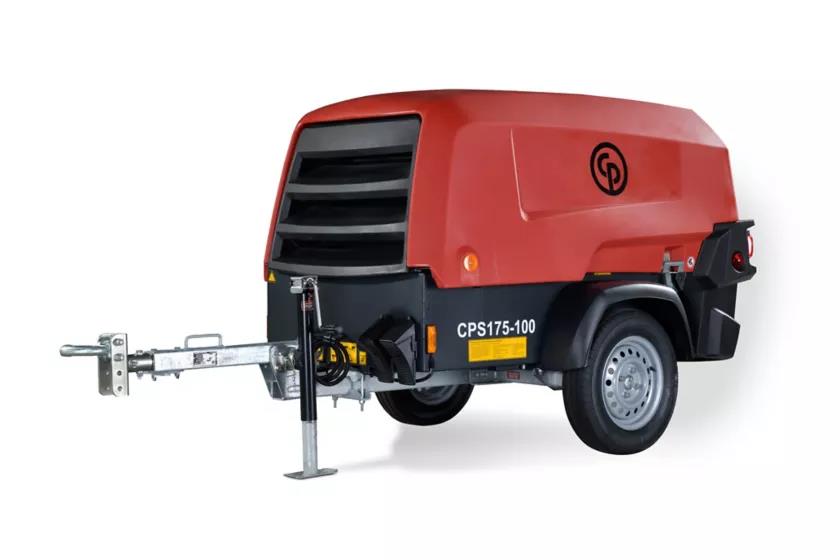

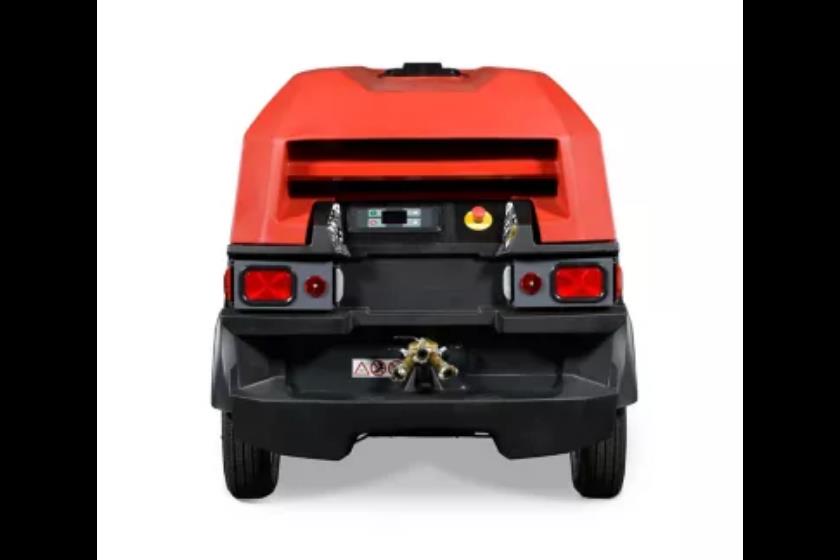

AIR COMPRESSOR TOWABLE 175CFM


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $130.00

Daily: $175.00

Weekly: $680.00

Quantity: for a period of
4 hour(s) day(s) week(s)

Additional Information

IN ORDER TO TRANSPORT THIS TRAILER, YOU NEED A 2" BALL HITCH AND A WORKING TRAILER LIGHT HOOKUP.
CHECK YOUR VEHICLE'S TOW CAPACITY AND COMPARE TO EQUIPMENT WEIGHT.
DELIVERY RATE: $50 load fee + $15.00/mile (pick up is FREE)
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
--SPECIFICATIONS--
Model - CPS 175-100
Minimum effective receiver pressure Psi(g) - 72
Normal effective working pressure Psi(g) - 100
Maximum unloading pressure Psi(g) - 125
Actual free air delivery* CFM - 170
Fuel consumption
at 100% FAD (full load) gal/h - 2.1
at 75% FAD gal/h - 1.48
at 50% FAD gal/h - 1.01
at 25% FAD gal/h - 0.85
Maximum typical oil content of compressed air ppm - 5
Max. sound power level (Lw @ 2000/14/EC) dB(A) - 98
Max. sound pressure level (Lp @ ISO 2151) dB(A) - 70
Max. ambient temperature at sea level F - 122
Min. starting temperature with cold start equipment F -4
Engine - Kubota - V1505-CR-T-E5B
Emission stage - US EPA - Tier 4 Final
Coolant - ParCool Green
Bore mm - 78
Number of cylinders - 4
Stroke mm - 78.4
Swept volume l - 1.498
Engine power at normal shaft speed @ ISO 9249G kW (HP) - 33 (44)
Full Load rpm - 3000
Unload rpm - 1800
Capacity of oil sump - US Gal - 1.45
Capacity of cooling system US Gal - 2.1
Capacity of compressor oil system US Gal - 2.1
Net capacity of air receiver US Gal - 3.2
Capacity of standard fuel tanks US Gal - 15.8
Safety valve - minimum opening pressure psi(g) - 142

Also check the following item(s) related to the above:

JACKHAMMER AIR POWER 90LB

3/4" ID 50' AIR HOSE W/ CHICAGO FITTINGS

* Please call us for any questions on our air compressor towable 175cfm rentals in Bellingham WA & surrounding communities in Whatcom County.
* A $50 reservation fee will be assessed on select items including excavators, skid steers, tractors, and dingoes. This fee will be refundable except in the case of late cancellation (less than 24 hours) or failure to pick up equipment when scheduled.
