EXCAVATORS

9VXB BATTERY EXCAVATOR 2400 LBS

Where to find 9VXB BATTERY EXCAVATOR 2400 LBS in Bellingham

Image for reference only
Actual item may look different
Click on image for larger view

Where to find 9VXB BATTERY EXCAVATOR 2400 LBS in Bellingham

Click on above thumbnails for alternate view

4 Hour: $250.00

Daily: $300.00

Weekly: $1,200.00

Quantity: for a period of
4 hour(s)   day(s)   week(s)


Additional Information

  • BUCKETS: 12" TOOTHED AND 18" TOOTHED
  • Electric zero tail swing mini excavator
  • DELIVERY RATE: $50 load fee + $15.00/mile (pick up is FREE)

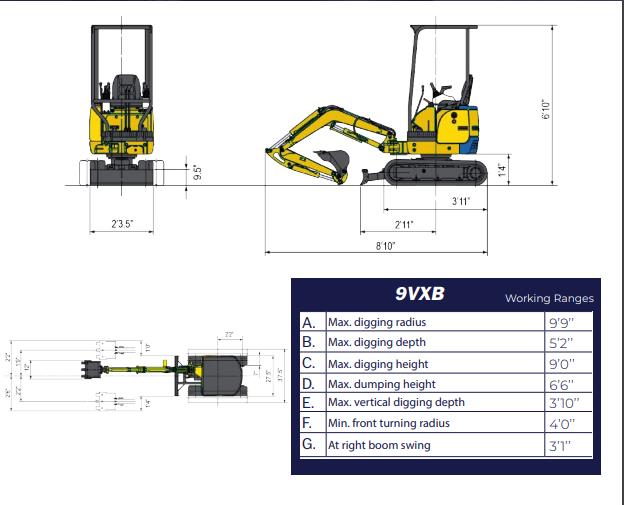

  • -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --SPECIFICATIONS-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
  • MODEL(S) - 9VXB
  • -- -- --WEIGHT - 2,060 lb (934 kg)
  • -- -- --OPERATING WEIGHT - 2,375 lbs (1,077 kg)
  • -- -- --GROUND PRESSURE - 3.8 psi (0.026 mpa)
  • WIDTH - 37.5" (95.25 cm) (ADJUSTABLE)
  • BLADE WIDTH - 27.5" (69.85 cm)
  • ADJUSTABLE TRACK WIDTH - 27.5"-37.5" Variable width (69.85 cm - 95.25 cm)
  • INDIVIDUAL TRACK WIDTH - 7.01" (17.8 cm)
  • HEIGHT - 6'1" / (1.86 m)
  • MAX LOADING HEIGHT - 6'6" (1.98 m)
  • BLADE HEIGHT - 11" (27.94 cm)
  • MAX DIGGING DEPTH - 5"2" (157.48 cm)
  • MAX VERTICAL WALL DIGGING DEPTH - 3'10" (116.84 cm)
  • OVERALL LENGTH - 6'1" (1.86 m)
  • ARM REACH - 9' (2.74 m)
  • -- -- --POWER SUPPLY - 50 amp power supply / 5 hp Baldor electric motor
  • -- -- --CHARGE TIME - 14 HOUR
  • -- -- --RUN TIME - 7 HOUR
  • -- -- --NOISE LEVEL:
  • DIGGING FORCE - 2,360 lbs (1,070 kg)
  • GROUND SPEED - 1.1 mph / 2.2 mph (1.77 km/h / 3.54 km/h)
  • SWING SPEED - 8.7 rpm
  • 9VXB SPECS LINK: https://katoces.com/product/9vxb-battery-mini-excavator/

Also check the following item(s) related to the above:
* Please call us for any questions on our 9vxb battery excavator 2400 lbs rentals in Bellingham WA & surrounding communities in Whatcom County.
* A $50 reservation fee will be assessed on select items including excavators, skid steers, tractors, and dingoes. This fee will be refundable except in the case of late cancellation (less than 24 hours) or failure to pick up equipment when scheduled.
