BOOM LIFT

45' ARTICULATING BOOM LIFT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $395.00

Weekly: $1,250.00

Quantity: for a period of
day(s) week(s)

Additional Information

DELIVERY ITEM ONLY!
DELIVERY RATE: $50 load fee + $15.00/mile (pick up is FREE)
IF LOAD CAPACITY IS EXCEEDED ON PLATFORM (660 LB UNRESTRICTED//1000 LB RESTRICTED), LOAD SENSOR WILL SHUT OFF THE MACHINE. THIS WILL RESULT IN CUSTOMER HAVING TO MAKE A SERVICE CALL TO US IN ORDER TO COME TO YOU AND RESET IT.
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --SPECIFICATIONS-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
MODEL: GENIE Z-45 XC
-- -- --TOTAL VEHICLE WEIGHT: 16,360 lb (7,421 kg)
-- -- --MAX LIFT CAPACITY: Unrestricted 660 lb (299 kg) / Restricted 1,000 lb (453 kg)
WIDTH: 7'6" (228.6 cm)
HEIGHT (STOWED): 7'4" (223.52 cm)
MAXIMUM WORKING HEIGHT: 51'6" (15.7 m)
GROUND CLEARANCE: 14.8" (37.59 cm)

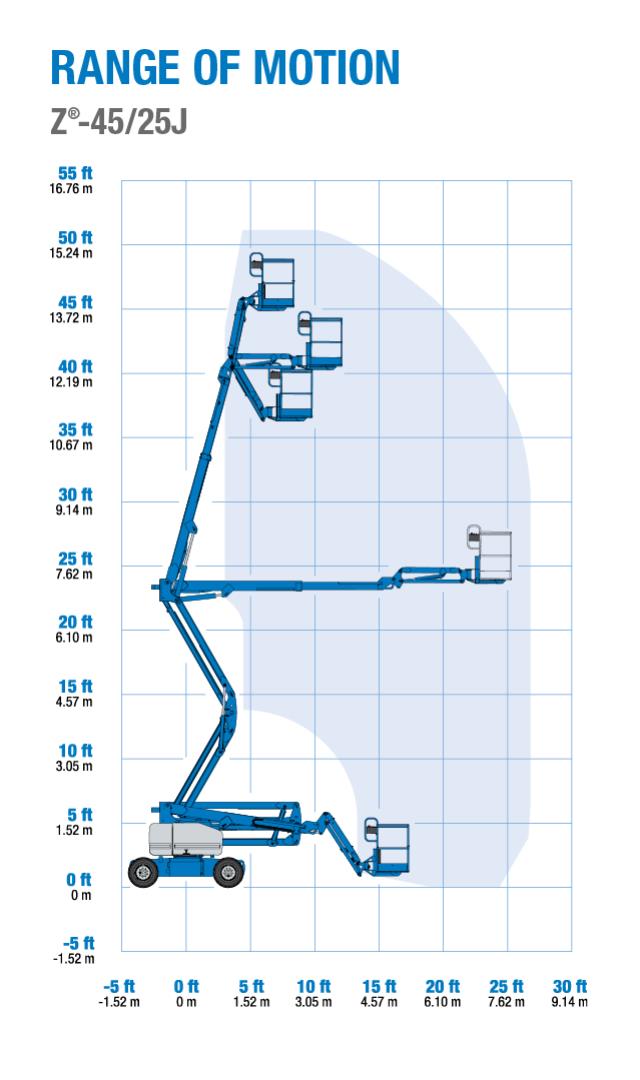

MAXIMUM UP & OVER CLEARANCE: 24'5" (7.44 m)
LENGTH (STOWED): 21'10" (6.65 m)
PLATFORM DIMENSIONS: 2'6" (76.2 cm) Length x 6' (182.88 cm) Width
MAXIMUM HORIZONTAL REACH: 24'9" (7.54 m)
-- -- --FUEL TYPE: Diesel OR Gas (depending on unit)
-- -- --FUEL TANK CAPACITY: 17 gal (64.35 L)
MAXIMUM OPERATING GRADE: 5%
HYDRAULIC TANK CAPACITY: 22 gal (83.28 L)
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --FEATURES-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
5' Jib boom
160 degree hydraulic platform rotation
4WD
Self-leveling platform, 6' dual entry platform w/side swing gate
Tilt and descent alarm
355 degree non-continuous turntable rotation
"Lift Tools" work tray
Dual parallelogram for vertical wall tracking
Z-45 XC SPECS LINK: https://www.genielift.com/docs/default-source/product-specifications/articulated-boom-lift/en/z-45xc_specsheet.pdf?sfvrsn=6a150ae_10

* Please call us for any questions on our 45 foot articulating boom lift rentals in Bellingham WA & surrounding communities in Whatcom County.
* A $50 reservation fee will be assessed on select items including excavators, skid steers, tractors, and dingoes. This fee will be refundable except in the case of late cancellation (less than 24 hours) or failure to pick up equipment when scheduled.
