CONVEYORS

18' CONVEYOR BELT FOR EARTHMOVING

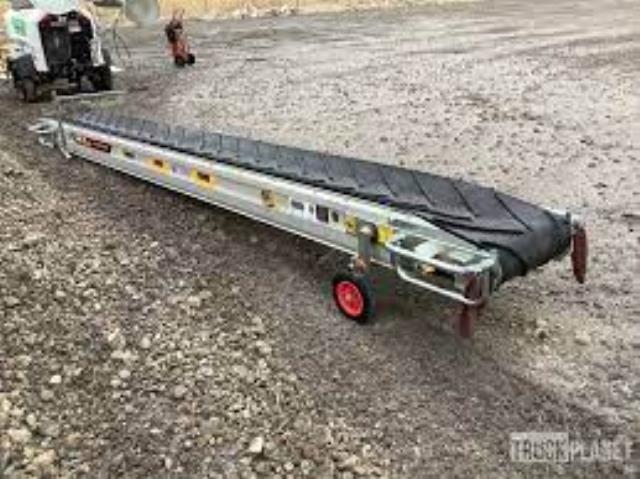

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $175.00

Weekly: $525.00

Quantity: for a period of
day(s) week(s)

Additional Information

TLKS300 SERIES
--DESCRIPTION--
A portable conveyor with a 12 wide rubber chevron belt, length 18 feet.
LINKIT portable conveyors are ideal for working in confined spaces or areas where access is restricted such as basements, trenches, and backyards.
--SPECIFICATIONS--
Hopper - (32" L x 20" W)
Folding Wheels*
Linking Brackets
Emergency Stops
Trestle (20 H)
Power Cord (3')
MODEL LKS300-5.5
DIMENSIONS - (18x12) 11" H x 213" L x 24" W
WEIGHT - 309 lbs.
RATED CAPACITY** 60 metric Tph
RUBBER BELT - Vulcanized 2-ply poly reinforced w/ chevron
BELT CAPACITY - 330 lbs.
BELT SPEED - (Forward / Reverse) 92 ft/min (fast) 65 ft/min (slow)
MAXIMUM ANGLE - 35 degrees
TEMPERATURE RATING - Motor: -13 F Belt: 15 F (min) / 185 F (max)
DRUM MOTOR - Rulmeca 0.55kW (1/2HP) Rulmeca 0.55kW (1/2HP)
INVERTER IMO - Jaguar CUB5A-6J 110v 1-phase input / 220v 3-phase output
AMP DRAW - 1.2 run / 5.0 peak
NOISE EMISSIONS - >75 dB
